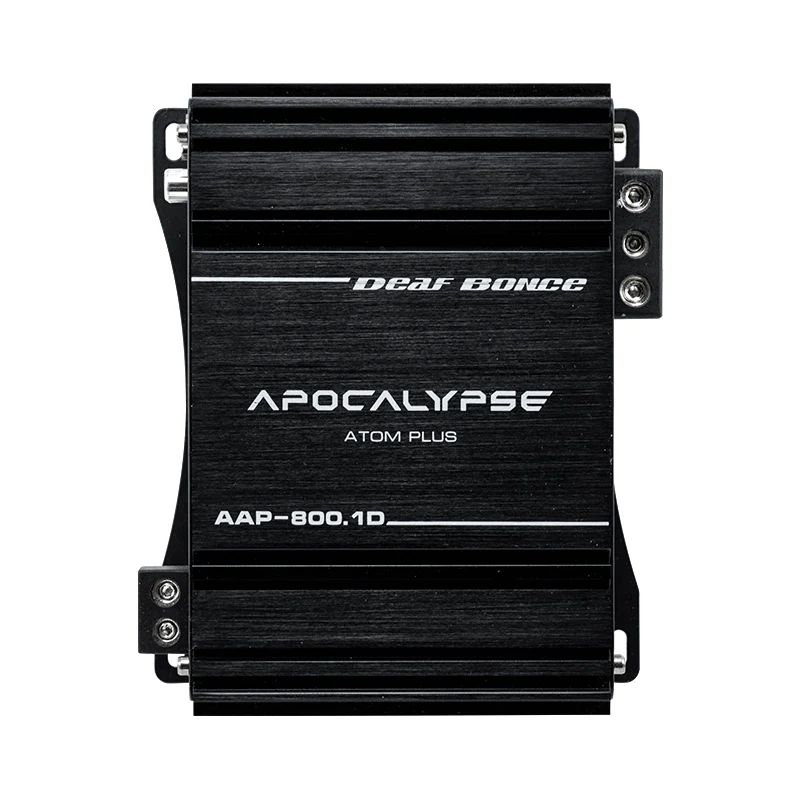

USED | Apocalypse AAP/AAB-800.1D Atom | 800 Watt Amplifier
The product isĀ UsedĀ
Used means: the product was used and still in good working condition.
It may have some scratches after previous installation and signs of wear.
The product is working, tested by our technician and still under the limited warranty for a 3 month.
ManualĀ Apocalypse AAP-800.1D Atom
Note: AAB and AAP series are not working at 0.5ohm
Specifications
| Model | AAP-800.1D Atom |
| Class | D |
| Number of the channels | 1 |
| Frequency response | 15-20000 Hz |
| 1 Ohm RMS Power (14.4 V) | 790 W |
| 1 Ohm RMS Power (12 V) | 700 W |
| 2 Ohm RMS Power (14.4 V) | 480 W |
| 4 Ohm RMS Power (14.4 V) | 270 W |
| Minimum permissible load on the channel | 1 Ohm |
| Input SPL | 0.2 - 6 V |
| Low pass filter | 80-20000 Hz |
| High pass filter | 15-1000 Hz |
| Crossover | 12 dB/Oct |
| Bass frequency adjustment | 35-70 Hz |
| Input terminal | 4 Ga |
| Output terminal | 8 Ga |
| Damping factor | ā„ 210 |
| Working voltage | 9 - 15 V |
| Signal-to-noise ratio | ā„ 100 dB |
| Size (WxLxH) | 6.30 x 5.31 x 2.50 inch |
Original: $119.90
-65%$119.90
$41.96USED | Apocalypse AAP/AAB-800.1D Atom | 800 Watt Amplifier
The product isĀ UsedĀ
Used means: the product was used and still in good working condition.
It may have some scratches after previous installation and signs of wear.
The product is working, tested by our technician and still under the limited warranty for a 3 month.
ManualĀ Apocalypse AAP-800.1D Atom
Note: AAB and AAP series are not working at 0.5ohm
Specifications
| Model | AAP-800.1D Atom |
| Class | D |
| Number of the channels | 1 |
| Frequency response | 15-20000 Hz |
| 1 Ohm RMS Power (14.4 V) | 790 W |
| 1 Ohm RMS Power (12 V) | 700 W |
| 2 Ohm RMS Power (14.4 V) | 480 W |
| 4 Ohm RMS Power (14.4 V) | 270 W |
| Minimum permissible load on the channel | 1 Ohm |
| Input SPL | 0.2 - 6 V |
| Low pass filter | 80-20000 Hz |
| High pass filter | 15-1000 Hz |
| Crossover | 12 dB/Oct |
| Bass frequency adjustment | 35-70 Hz |
| Input terminal | 4 Ga |
| Output terminal | 8 Ga |
| Damping factor | ā„ 210 |
| Working voltage | 9 - 15 V |
| Signal-to-noise ratio | ā„ 100 dB |
| Size (WxLxH) | 6.30 x 5.31 x 2.50 inch |
